Tinned Copper Tubular Cable Lugs

Tinned Copper Tubular Cable Lugs
Tinned Copper Tubular Cable Lugs
Product Code : Without Inspection H
Product Description

Tinned Copper Tubular Cable Lugs

We are one of the most promising manufacturers and exporters of Tinned Copper Tubular Cable Lugs. These products are made in accordance with international quality standards using superior grade copper with a strong coating of tin. The offered product is used in electrical industry to join or connect various cables. Our offered range of products is thoroughly checked by our team of skilled and diligent professionals on numerous parameters to ensure zero defect. These Tinned Copper Tubular Cable Lugs are well-known for below mentioned attributes:

  • Compact design
  • Lightweight
  • Abrasion resistant
  • Perfect finish

Other details:

Material: Electrolytic High conductivity copper

Finish: Electro Tinned Plated or Copper

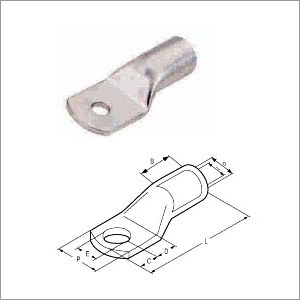

Cable mm2 Stud Hole E Dimensions Product Code
I O P B C D Overall Length
L
2.5 M 5.3 2.4 4 10 8 5 6 22 HCLT 2.5-5
4 M 5.3 3.1 4.8 10 8 5 6 22 HCLT 4-5
6 M 5.3 3.8 5.5 10 9 5 6 23.5 HCLT 6-5
M 6.5 3.8 5.5 10 9 6 5 23.5 HCLT 6-6
M 8.5 3.8 5.5 12 9 7 8 28 HCLT 6-8
M 10.5 3.8 6 14.5 9 8 14 33 HCLT 6-10
M 13 3.8 6 17 9 12 13 36 HCLT 6-12
10 M 5.3 4.5 6.2 10 10 6 7 26 HCLT 10-5
M 6.5 4.5 6.2 10.5 10 6 7 26.5 HCLT 10-6
M 8.5 4.5 6.2 12 10 7 9 28 HCLT 10-8
M 10.5 4.5 7 15 10 8 13 34 HCLT 10-10
M 13 4.5 7 17 10 12 13 40 HCLT 10-12
16 M 5.3 5.4 7.1 10.5 13 6.5 7 31 HCLT 16-5
M 6.5 5.4 7.1 10.5 13 6.5 7 31 HCLT 16-6
M 8.5 5.4 7.1 12 13 7 9 32 HCLT16-8
M 10.5 5.5 7.6 15 13 8 13 38 HCLT 16-10
M 13 5.5 7.6 17 13 12 13 42 HCLT16-12
25 M 5.3 6.8 8.8 13 13 6.5 7 32 HCLT 25-5
M 6.5 6.8 8.8 13 13 6.5 7 32 HCLT 25-6
M 8.5 6.8 8.8 13 13 6 9 32 HCLT 25-8
M 10.5 6.8 8.8 15 13 8 13 38 HCLT25-10
M 13 6.8 9.5 18 13 11 14 42 HCLT 25-12
M 15 6.8 9.5 21 13 13 14 45 HCLT 25-14
35 M 6.5 8.2 10.6 15 15 7 9 37.5 HCLT 35-6
M 8.5 8.2 10.6 15 15 9 11 42 HCLT 35-8
M 10.5 8.2 10.6 15 16 9 15 48 HCLT 35-10
M 13 8.2 10.6 17 15 14 14 53 HCLT 35-12
M 15 8.2 10.6 20 15 14 14 53 HCLT 35-12
50 M 6.5 9.5 12.4 17.5 17 9 11 44 HCLT 50-6
M 8.5 9.5 12.4 17.5 17 9 11 44 HCLT 50-8
M 10.5 9.5 12.4 17.5 17 12 12 49 HCLT 50-10
M 13 9.5 12.4 20.5 17 14.5 14 53 HCLT 50-12
M 15 9.5 12.4 23 17 14.5 15 54 HCLT 50-14
70 M 6.5 11.2 14.7 21 21 10 10 48 HCLT 70-6
M 8.5 11.2 14.7 21 21 10 10 48 HCLT 70-8
M 10.5 11.2 14.7 21 21 12 12 51.5 HCLT 70-10
M 13 11.2 14.7 21 21 13 13 55 HCLT 70-12
M 15 11.2 14.7 22 21 15 17 61 HCLT 70-14
95 M 8.5 13.5 17.4 25 23 12 12 55 HCLT 95-8
M 10.5 13.5 17.4 25 24 12 12 55 HCLT 95-10
M 13 13.5 17.4 25 24 13 13 59 HCLT 95-12
M 15 13.5 17.4 25 24 15 17 67 HCLT 95-14
M 17 13.5 17.4 26 24 16 16 67 HCLT 95-16
M 21 13.5 17.4 28 24 16 17 68 HCLT 95-20
120 M 8.5 15 19.4 28 24

65 HCLT 120-8
M 10.5 15 19.4 28 24

65 HCLT 120-10
M 13 15 19.4 28 24

65 HCLT 120-12
M 15 15 19.4 28 24

68 HCLT 120-14
M 17 15 19.4 28 24

68 HCLT 120-16
M 21 15 19.4 28 24

68 HCLT 120-20
150 M 8.5 16.5 21.2 30 30

69 HCLT 120-8
M 10.5 16.5 21.2 30 30

69 HCLT 150-10
M 13 16.5 21.2 30 30

72 HCLT 150-12
M 15 16.5 21.2 30 30

72 HCLT-150-14
M 17 16.5 21.2 30 30

72 HCLT 150-16
M 21 16.5 21.2 30 30

72 HCLT 150-20
185 M 10.5 19 23.5 34 30

82 HCLT 185-10
M 13 19 23.5 34 30

82 HCLT 185-12
M 15 19 23.5 34 30

82 HCLT 185-14
M 17 19 23.5 34 30

82 HCLT 185-16
M 21 19 23.5 34 30

89 HCLT 185-20
240 M 10.5 21 26.5 38 35

94 HCLT 240-10
M 13 21 26.5 38 35

94 HCLT 240-12
M 15 21 26.5 38 35

94 HCLT 240-14
M 17 21 26.5 38 35

94 HCLT 240-16
300 M 13 23.5 30 43 46

111 HCLT-300-12
M 15 23.5 30 43 46

111 HCLT 300-14
M 17 23.5 30 43 46

111 HCLT 300-16
M 21 23.5 30 43 46

111 HCLT 300-20
400 M 17 27 36.5 50 49

114 HCLT 400-16
M 21 27 36.5 50 49

114 HCLT 400-20
500 M 17 30 39 56 58

134 HCLT 500-16
M 21 30 39 56 58

134 HCLT 500-20
630 M 17 35 41.5 61 70

144 HCLT 630-16
M 21 35 41.5 61 70

144 HCLT 630-20
M 10.5 35 41.5 61 70

144 HCLT 630-4 E10
