Split Bolt Connector Line Tape 'Hallmark' manufacturers a vast range of line taps to meet the material and dimensional specifications laid by different international standards. Brass line taps are made with high tensile brass as per BS 2874-CZ 112. Threads are formed by rolling process giving the nut extra clamping force. Pressure pads are made from extruded bras (not cast), preventing the pads from cracking. Brass line taps are manufactured in passivated natural brass with electro tinned finish. They are also supplied in high conductivity copper. Technical Specifications
|

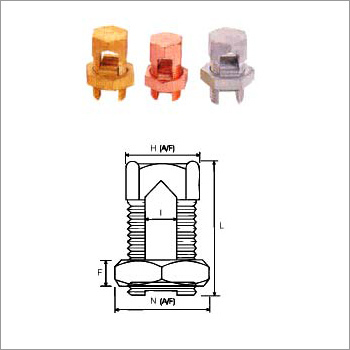

Cable Size mm2
|
I
|
H a/f
|
N a/f
|
F
|
L
|
Prod. Code
|
|
6
|
4.00
|
12.70
|
13.35
|
4.80
|
19.85
|
HCSB 6
|
|
10
|
4.70
|
12.70
|
19.00
|
5.60
|
26.75
|
HCSB 10
|
|
16
|
5.70
|
12.70
|
19.00
|
5.60
|
26.00
|
HCSB 16
|
|
25
|
7.30
|
16.00
|
19.00
|
5.60
|
28.00
|
HCSB 25
|
|
35
|
7.80
|
18.50
|
24.00
|
6.35
|
35.00
|
HCSB 35
|
|
50
|
9.70
|
24.10
|
27.20
|
8.65
|
42.00
|
HCSB 50
|
|
70
|
11.50
|
24.10
|
27.20
|
8.65
|
44.50
|
HCSB 70
|
|
95
|
14.40
|
26.50
|
35.40
|
9.40
|
50.00
|
HCSB 95
|
|
120
|
16.20
|
30.00
|
35.40
|
12.00
|
57.50
|
HCSB 120
|
|
150
|
16.20
|
30.00
|
35.40
|
12.00
|
57.50
|
HCSB 150
|
|
185
|
18.20
|
31.75
|
38.00
|
12.00
|
57.50
|
HCSB 185
|
|
240
|
22.00
|
40.00
|
48.20
|
14.25
|
72.50
|
HCSB 240
|
|
300
|
24.00
|
42.00
|
50.00
|
14.25
|
72.50
|
HCSB 300
|
|
400
|
26.00
|
48.00
|
56.00
|
16.00
|
76.50
|
HCSB 400
|
|
500
|
30.00
|
55.00
|
65.00
|
16.00
|
80.00
|
HCSB 500
|
|
