Nickel Aluminum Bronze

Nickel Aluminum Bronze
Nickel Aluminum Bronze
Product Code : 63
Product Description

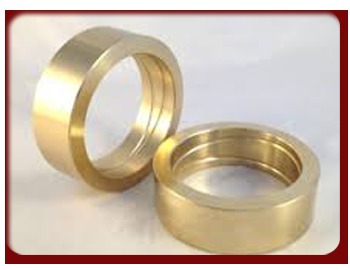

Nickel Aluminum Bronze contains small additions of manganese, iron and aluminum, plus lead for lubricity, anti-seizing and embeddibility. Like the aluminum bronzes, they combine very high strength with excellent corrosion resistance. Nickel Aluminum Bronze bearings can operate at high speeds under heavy loads, but require high shaft hardnesses and nonabrasive operating conditions.The various types of Nickel Aluminum Bronze are a popular choice for the Aerospace, Fastener, Marine and Oil and Gas Industries.

Hall Mark is involved in Exporting & Supplying an extensive range of high quality Nickel Aluminum Bronze for a wide range of various industries. Our Nickel Aluminum Bronze products are tested at several parameters, our products are known for their excellent conduction towards heat and electricity.We have the capability and flexibility to meet unique product requirements and exact specifications and size.Hall Mark services are in demand with the traditional industries as well as with the customers who indulge in modern mega trends.In Nickel Aluminum Bronze we are one of the leading Exporter & Suppliers in worldwide.We have a team of highly qualified, motivated & experienced staff in production and sales to meet customers ever growing quality and service expectation.It holds strongly to excellent customer service, products-quality, commitment, compliance and competitive price structure.

Nickel Aluminum Bronze Specification

Features
Nickel-aluminum bronzes contain 5% to 11% aluminum as well as additions of iron and nickel for strength.
Application :

Landing Gear Bushings & Bearings for the Aerospace Industry, Propeller Hubs, Wear Rings, Hardware for the Marine Industry, Piping for Vertical Pump Columns, Firefighting and Fire Suppression Systems, Seawater Lift Pumps for theOil & Gas Industry, Hydraulic Bushings for Earth Moving Equipment as well as many other applications.
Grade

AMS 4590, AMS 4640, AMS 4880, AMS 4881, C63000, C63020, C63200, C95500 Nickel Aluminium Bronze "9D", C95510 Nickel Aluminium Bronze (AMS 4880), C95520 Nickel Aluminium Bronze (AMS 4881), C95800 Alpha Nickel Aluminium Bronze, CuAL10Ni5Fe4 Nickel Aluminum Bronze

Nickel Aluminum Bronze Useful info


                               Nickel Aluminium Bronze Chemical Composition
          Cu%           78.00 MIN
          Sn%           N/A
          Pb%           N/A
          Zn%           N/A
          Fe%           3.00 - 5.00
          Ni%           3.00 - 5.50
          Sb%           N/A
          P%           N/A
          S%           N/A
          AI%           10.00 - 11.50
          Mn%           3.50
          Si%           N/A


Nickel Aluminum Bronze Physical Properties


                               Nickel Aluminum Bronze Physical Properties


US Customary Metric
Melting Point-Liquidus 1930 F 1054 C
Melting Point-Solidus 1900 F 1038 C
Density 0.272 lb/in3 @ 68 F 7.53 gm/cm3 @ 20 C
Specific Gravity 7.530 7.53
Electrical Resistivity 122.80 ohms-cmil/ft
@ 68 F
20.41 microhm-cm
@ 20 C
Electrical Conductivity 80 %IACS @ 68 F 0.049 MegaSiemens/
cm @ 20 C
Thermal Conductivity 24.20 Btu ft/
(hr ft2 oF) @ 68 F
41.9 W/m oK @ 20 C
Coefficient of
Thermal Expansion
90 10-6 per oF
(68-572 F)
16.2 10-6 per oC
(20-300 C)
Specific Heat Capacity 0.10 Btu/lb/oF
@ 68 F
419.0 J/kg oK
@ 293 K
Modulus of Elasticity
in Tension
16000 ksi 110000 MPa
Magnetic Permeability* 1.320 1.32


Nickel Aluminum Bronze Uses

Nickel Aluminum Bronzes are used in Landing Gear Bushings & Bearings for the Aerospace Industry, Propeller Hubs, Wear Rings, Hardware for the Marine Industry, Piping for Vertical Pump Columns, Firefighting and Fire Suppression Systems, Seawater Lift Pumps for the Oil & Gas Industry, Hydraulic Bushings for Earth Moving Equipment as well as many other applications.
