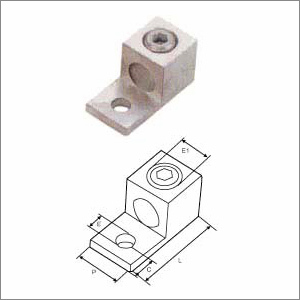

Aluminium Single Barrel Connector, One Hole Mount Technical Specifications Material: Aluminium Finish: Electro Tinned
|
Cable mm2
|
Stud Hole E
|
Dimensions
|
Product Code
|
|
P
|
C
|
E1
|
L
|
|
4 STR
|
14 AWG
|
12.70 (0.50)
|
5.95 (0.23)
|
1/4
|
2.40 (0.09)
|
HMLA-4
|
|
2 STR
|
14 AWG
|
12.70 (0.50)
|
7.55 (0.29)
|
1/4
|
2.75 (0.10)
|
HMLA-2
|
|
1/0 STR
|
14 AWG
|
15.90 (0.62)
|
11.10 (0.43)
|
1/4
|
4.70 (0.18)
|
HMLA-10
|
|
2/0 STR
|
14 AWG
|
15.90 (0.62)
|
11.10 (0.43)
|
1/4
|
4.70 (0.18)
|
HMLA-20
|
|
250 KCMIL
|
6 STR
|
21.75 (0.85)
|
12.75 (0.50)
|
5/16
|
6.40 (0.25)
|
HMLA-250
|
|
300 KCMIL
|
6 STR
|
21.75 (0.85)
|
11.90 (0.46)
|
5/16
|
6.40 (0.25)
|
HMLA-300
|
|
350 KCMIL
|
6 STR
|
28.60 (1.12)
|
12.70 (0.50)
|
3/8
|
6.40 (0.25)
|
HMLA-350
|
|
500 KCMIL
|
4 STR
|
38.10 (1.50)
|
19.05 (0.75)
|
3/8
|
8.00 (0.31)
|
HMLA-500
|
|
600 KCMIL
|
2 STR
|
38.10 (1.50)
|
20.60 (0.81)
|
3/8
|
11.10 (0.43)
|
HMLA-600
|
|
800 KCMIL
|
300 KCMIL
|
44.50 (1.75)
|
22.20 (0.87)
|
5/8
|
12.70 (0.50)
|
HMLA-800
|
|
1000 KCMIL
|
500 KCMIL
|
44.50 (1.75)
|
22.20 (0.87)
|
5/8
|
12.70 (0.50)
|
HMLA-1000
|
|
